Wood Fiber Board

1. Introduction to Wood Fiber Board

Wood Fiber Board is an engineered wood product made from wood Fibers bonded together with adhesives under heat and pressure. It is a versatile material widely used in construction, furniture, insulation, and packaging industries. Known for its strength, durability, and eco-friendliness, Wood Fiber Board is an excellent choice for sustainable building solutions.

Manufactured from renewable wood resources, Wood Fiber Boards can vary in density, thickness, and surface finish to meet different application requirements. They are commonly available as medium-density fiberboard (MDF), high-density fiberboard (HDF), and low-density boards, offering flexibility for interior and exterior applications.

With the rising demand for environmentally friendly and sustainable building materials, Wood Fiber Boards have gained significant attention in the global market. They combine mechanical strength, thermal insulation properties, and aesthetic appeal, making them suitable for a variety of industrial and residential applications.

2. Manufacturing Process

The manufacturing of wood fiber boards involves several steps:

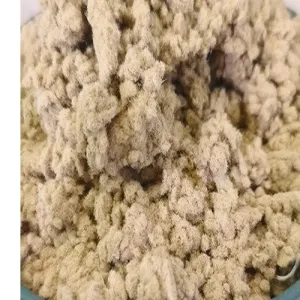

1. Raw Material Preparation: Wood logs or chips are processed into fibers. Softwoods, hardwoods, or recycled wood materials are used depending on the desired board characteristics.

2. Fiber Refinement: Wood fibers are cleaned, dried, and refined to uniform size.

3. Blending with Adhesives: Fibers are mixed with eco-friendly adhesives, resins, or wax for strength and water resistance.

4. Forming and Pressing: The mixture is spread into mats and pressed under heat and pressure to form dense boards.

5. Finishing: Boards are trimmed, sanded, or laminated to achieve smooth surfaces suitable for furniture, flooring, or panels.

6. Quality Control: Final products undergo testing for strength, moisture resistance, and surface quality.

3. Technical Parameters and Specifications

3.1 Dimensions

• Thickness: 3 mm – 50 mm

• Width: 1220 mm – 2440 mm

• Length: 2440 mm – 3050 mm

3.2 Density

• Low-density boards: 300–600 kg/m³

• Medium-density boards: 600–800 kg/m³

• High-density boards: 800–1000 kg/m³

3.3 Moisture Content

• Typically 6–12%, adjustable for specific applications

3.4 Mechanical Properties

• Modulus of rupture (MOR): 20–40 MPa

• Modulus of elasticity (MOE): 2500–4500 MPa

• Internal bond strength: 0.5–1.2 MPa

3.5 Thermal Properties

• Thermal conductivity: 0.07–0.12 W/m·K

• Suitable for insulation panels

3.6 Surface Finish

• Smooth, sanded, or laminated

• Can accept paint, veneer, or laminates

3.7 Fire Resistance

• Fire-retardant treatments available

• Class B or Class C fire rating depending on treatment

3.8 Eco-Certifications

• FSC certified wood

• Low formaldehyde emissions (E0, E1 standards)

4. Key Features of Wood Fiber Board

1. High Strength and Durability: Can withstand mechanical loads and impact.

2. Dimensional Stability: Resistant to warping or shrinking under normal conditions.

3. Smooth Surface Finish: Ideal for furniture, cabinetry, and laminated surfaces.

4. Eco-Friendly: Made from renewable wood resources and low-emission adhesives.

5. Versatile Applications: Suitable for walls, ceilings, floors, furniture, and packaging.

6. Thermal and Acoustic Insulation: Low thermal conductivity and sound absorption properties.

7. Fire-Resistant Options: Available with fire-retardant treatment for construction compliance.

5. Advantages of Wood Fiber Board

• Sustainability: Made from recycled wood or responsibly sourced timber.

• Cost-Effective: Cheaper than solid wood while offering similar mechanical performance.

• Customizable: Can be cut, drilled, laminated, or veneered to meet design requirements.

• Lightweight: Easier to handle and transport compared to traditional wood planks.

• Consistent Quality: Manufactured under controlled conditions for uniform density and thickness.

• Improved Indoor Air Quality: Low-emission boards meet modern environmental standards.

6. Applications

6.1 Furniture and Cabinetry

• Wardrobes, cabinets, tables, and shelves

• Laminated or veneered surfaces for aesthetics

6.2 Flooring and Wall Panels

• Decorative wall panels

• Underlayment for floors

• Acoustic panels in offices or studios

6.3 Construction and Building

• Partition walls

• Roof and ceiling panels

• Thermal insulation boards

6.4 Packaging Industry

• Protective packaging for fragile items

• Pallet boards and crates

6.5 DIY Projects

• Home improvement

• Decorative panels

• Crafting and hobby projects

7. Usage Instructions

1. Cutting and Shaping: Use carbide-tipped saw blades or CNC machines for precise cuts.

2. Sanding and Finishing: Sand surfaces before painting or veneering.

3. Assembly: Use wood screws, nails, or adhesives suitable for fiberboard.

4. Moisture Protection: Apply coatings or laminates in humid environments to prevent swelling.

5. Storage: Keep boards flat and dry, avoiding direct sunlight or water contact.

8. Maintenance

• Clean with soft, dry cloth; avoid excessive water.

• Repair scratches with wood filler or laminate repair kits.

• For laminated boards, avoid abrasive cleaners to maintain surface quality.

9. Common Problems and Solutions (FAQ)

Q1: Does wood fiber board swell in water?

Answer: Yes, untreated boards can absorb moisture. Use laminates or sealants for water resistance.

Q2: Can it be used outdoors?

Answer: Only specially treated boards with water and UV-resistant coatings are suitable for outdoor use.

Q3: How does it compare to MDF or plywood?

Answer: Wood fiber boards are denser than MDF but lighter than plywood, offering good dimensional stability and a smooth surface.

Q4: Is it eco-friendly?

Answer: Yes, boards made from FSC-certified wood and low-emission adhesives are environmentally friendly.

Q5: Can it be painted or laminated?

Answer: Yes, smooth surfaces allow painting, laminating, or veneering.

Q6: What tools are suitable for cutting?

Answer: Carbide-tipped saws, CNC routers, and standard woodworking tools.

Q7: How to prevent edge chipping?

Answer: Use sharp blades, cut slowly, and apply edge banding if required.

11. Conclusion

Wood Fiber Board is a versatile, durable, and eco-friendly engineered wood product that has become essential in furniture making, construction, flooring, and packaging. Its strength, dimensional stability, and smooth surface make it ideal for both functional and decorative applications.

With options for low, medium, and high density, as well as treatments for water resistance and fire retardancy, wood fiber boards provide customizable solutions to meet various industrial, commercial, and residential needs.

Adopting wood fiber board in projects ensures cost-effectiveness, sustainability, and high-quality results, making it a preferred choice for modern construction, furniture manufacturing, and eco-conscious design.
