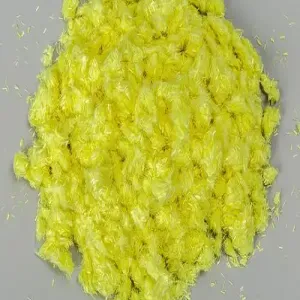

Heat Resistant Aramid Fiber

Introduction to Heat Resistant Aramid Fiber

Heat Resistant Aramid Fiber is a specialized class of Synthetic Fiber known for its exceptional thermal stability, strength, and durability. Derived from aromatic polyamides, Aramid fibers such as Nomex® (meta-aramid) and Kevlar® (para-aramid) are engineered to resist high temperatures without melting or degrading, making them indispensable in industries requiring flame retardancy and heat resistance.

These Fibers play a critical role in applications ranging from protective clothing for firefighters and industrial workers to high-performance composites in aerospace and automotive sectors. Their ability to maintain mechanical integrity under intense heat exposure while remaining lightweight and flexible sets them apart from other materials.

This detailed guide explores Heat Resistant Aramid fiber's properties, specifications, key features, benefits, applications, usage guidelines, and answers to common questions to help businesses leverage this advanced material effectively.

Technical Parameters of Heat Resistant Aramid Fiber

Understanding the technical specifications is essential to selecting the right heat resistant aramid fiber for your application.

1. Fiber Composition

• Material: Aromatic polyamide polymers

• Types: Meta-aramid (e.g., Nomex®), Para-aramid (e.g., Kevlar®) with varying heat resistance and mechanical properties

2. Physical Properties

• Density: Approximately 1.38 - 1.44 g/cm³

• Fiber Diameter: Typically 10-15 microns

• Color: Natural Fibers range from golden yellow (para-aramid) to brownish hues (meta-aramid)

3. Thermal Properties

• Decomposition Temperature: Above 400°C (non-melting fiber)

• Continuous Operating Temperature: Up to 200-250°C for Nomex® and up to 400°C for Kevlar® with protective coatings

• Thermal Conductivity: Low, providing excellent insulation against heat transfer

4. Mechanical Properties

• Tensile Strength: 2000 - 3600 MPa depending on fiber type

• Modulus of Elasticity: 70 - 130 GPa

• Elongation at Break: 2-4%

5. Chemical Resistance

• Resistant to most organic solvents, fuels, and oils

• Sensitive to strong acids, bases, and UV radiation without protective treatment

6. Electrical Properties

• Excellent electrical insulation capabilities, often used in electrical applications requiring heat resistance

Key Features of Heat Resistant Aramid Fiber

1. Superior Heat and Flame Resistance

Maintains structural integrity and does not melt or ignite easily under high temperatures, providing vital protection in extreme environments.

2. High Tensile Strength and Durability

Combines exceptional strength with toughness to withstand mechanical stresses without compromising heat resistance.

3. Lightweight and Flexible

Offers a favorable strength-to-weight ratio, enabling mobility and comfort in protective clothing and lightweight composite parts.

4. Chemical and Abrasion Resistance

Resistant to many chemicals and wear, making it suitable for harsh operational conditions.

5. Low Thermal Expansion

Minimal dimensional change under heat reduces deformation in critical applications.

6. Electrical Insulation

Effective in maintaining insulation performance at elevated temperatures.

Advantages of Heat Resistant Aramid Fiber

1. Enhanced Worker Safety

Widely used in firefighter suits, industrial protective gear, and gloves to safeguard against burns and heat exposure.

2. Improved Performance in Extreme Environments

Ideal for aerospace, automotive, and industrial applications where materials are exposed to high temperatures and mechanical stresses.

3. Longevity and Reduced Maintenance

Withstands harsh thermal and chemical environments, reducing wear and replacement frequency.

4. Versatility Across Applications

Suitable for textiles, composites, insulation, and electrical components due to its unique combination of properties.

5. Eco-Friendly and Sustainable

Many aramid fibers are recyclable or have a low environmental impact compared to traditional heat-resistant materials.

6. Compliance with Industry Standards

Meets stringent safety and performance standards in multiple industries globally.

Application Scenarios of Heat Resistant Aramid Fiber

1. Protective Clothing

• Firefighter turnout gear, industrial safety apparel, gloves, and helmets.

• Provides thermal protection while ensuring wearer comfort.

2. Aerospace and Automotive Components

• Heat shields, gaskets, brake pads, and composite reinforcements.

• Enhances performance and safety in engines and structural parts.

3. Electrical Insulation

• High-temperature cable wraps, transformer insulation, circuit boards.

• Maintains dielectric properties under heat stress.

4. Industrial Equipment and Machinery

• Conveyor belts, filtration fabrics, hoses, and seals exposed to heat and chemicals.

5. Marine and Offshore Applications

• Fire-resistant sails, safety equipment, and protective coatings in harsh marine environments.

6. Other Specialized Uses

• Thermal insulation panels, expansion joints, and high-temperature gasketing.

Usage Instructions for Heat Resistant Aramid Fiber

Handling and Storage

• Store in a cool, dry, dark environment to prevent UV degradation.

• Avoid exposure to strong acids and bases during storage and handling.

Fabrication and Processing

• Use sharp cutting tools to prevent fiber damage.

• Compatible with high-temperature resins and adhesives for composites.

• Avoid overheating during sewing or lamination.

Cleaning and Maintenance

• Use mild detergents; avoid bleach and strong chemicals.

• Air dry to preserve Fiber Properties.

• Inspect for wear or damage regularly, replace as necessary.

Protective Gear Manufacturing

• Layering Aramid Fabrics with other materials for optimized heat resistance and comfort.

• Follow industry-specific standards for garment assembly.

Common Problems and Solutions

Frequently Asked Questions (FAQ)

Q1: What is the difference between meta-aramid and para-aramid fibers in heat resistance?

Meta-aramid fibers (e.g., Nomex®) offer superior thermal stability and flame resistance but lower tensile strength. Para-aramid fibers (e.g., Kevlar®) provide higher strength but slightly less heat resistance.

Q2: Can heat resistant aramid fibers be dyed?

Aramid fibers have poor dye affinity; however, they can be coated or laminated with colored materials.

Q3: Are heat resistant aramid fibers waterproof?

They are not inherently waterproof but can be treated or combined with waterproof layers.

Q4: How should heat resistant aramid fibers be stored?

In a dry, cool, UV-protected environment to prevent degradation.

Q5: Can heat resistant Aramid Fiber Fabrics be used for electrical insulation?

Yes, they are widely used in high-temperature electrical insulation applications.

Q6: What industries most commonly use heat resistant aramid fiber?

Firefighting, aerospace, automotive, electrical, and industrial manufacturing.

Q7: How long do heat resistant aramid fibers last in service?

With proper care, they can maintain performance for many years, though exposure to UV and harsh chemicals can reduce lifespan.

Q8: Are there any health risks in handling aramid fibers?

Minimal risk; however, dust from cutting or processing can irritate skin and respiratory tract, so use protective gear.

Conclusion

Heat resistant aramid fiber is a critical material in modern engineering and safety applications, offering unmatched performance in extreme thermal and mechanical environments. Its unique combination of heat resistance, strength, and durability enables innovative solutions across industries from protective clothing to aerospace composites.

Understanding the technical parameters, correct handling, and application possibilities ensures that manufacturers and users can maximize the benefits of heat resistant aramid fiber. As regulations and safety standards become more rigorous worldwide, this fiber’s role in safeguarding lives and enhancing technology continues to grow.

Investing in quality heat resistant aramid fibers delivers long-term value through improved safety, reduced maintenance, and superior performance in demanding applications.
