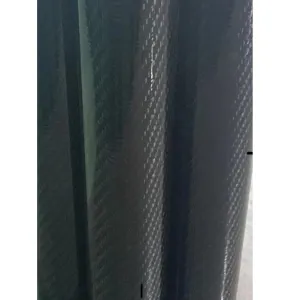

Carbon Fiber Pipe

Introduction to Carbon Fiber Pipe

Carbon Fiber Pipes are cylindrical structural components made from Carbon Fibers embedded in high-performance resin systems. They are celebrated for their exceptional strength-to-weight ratio, rigidity, Corrosion Resistance, and thermal stability, making them essential in modern engineering and industrial applications.

Unlike traditional metal pipes, carbon fiber pipes provide high mechanical performance while significantly reducing weight. They are widely used in aerospace, automotive, sports, robotics, marine, industrial machinery, and construction.

Carbon fiber pipes can be manufactured using various techniques, including filament winding, pultrusion, seamless molding, or roll wrapping, which determine their strength, stiffness, and dimensional accuracy. Their lightweight nature and superior mechanical properties make them a preferred choice over steel, aluminum, and other conventional metals in demanding applications.

Technical Parameters of Carbon Fiber Pipe

Selecting the right carbon fiber pipe requires understanding its technical parameters:

1. Material Composition

• Fiber Type: Standard Modulus, Intermediate Modulus, High Modulus

• Resin System: Epoxy, Vinyl Ester, Polyester

• Fiber Orientation: Unidirectional (UD) for axial strength, Spiral or woven for torsional and bending loads

2. Dimensional Specifications

• Outer Diameter (OD): 5 mm – 500 mm (customizable)

• Inner Diameter (ID): Depending on wall thickness, typically 2 mm – 495 mm

• Wall Thickness: 0.5 mm – 20 mm

• Length: 100 mm – 12,000 mm (standard stock and custom options available)

3. Mechanical Properties

• Tensile Strength: 600–2,500 MPa depending on fiber type

• Modulus of Elasticity: 30–600 GPa

• Flexural Strength: 800–2,000 MPa

• Impact Resistance: Excellent shock absorption

• Weight Density: ~1.5–1.8 g/cm³ (much lighter than steel)

4. Thermal and Chemical Resistance

• Service Temperature: Up to 250–500°C depending on resin

• Coefficient of Thermal Expansion (CTE): Near-zero along fiber axis

• Chemical Resistance: Resistant to acids, alkalis, solvents, and corrosion

5. Surface Finish and Tolerance

• Finish Options: Glossy, matte, painted, or wrapped for UV protection

• Roundness: ≥99% for high-precision applications

• Dimensional Tolerance: ±0.05–0.2 mm depending on manufacturing process

Key Features of Carbon Fiber Pipe

1. High Strength-to-Weight Ratio: Stronger than steel but much lighter

2. Rigidity and Stiffness: Maintains shape under axial and bending loads

3. Corrosion Resistance: Immune to rust, chemical attack, and environmental degradation

4. Low Thermal Expansion: Maintains dimensional stability in varying temperatures

5. Impact and Fatigue Resistance: High durability under repeated load cycles

6. Customizable Fiber Orientation: Optimized for specific load directions

7. Versatile Manufacturing: Filament winding, pultrusion, or seamless molding available

8. Aesthetic Options: Smooth or patterned surfaces for visible applications

Advantages of Carbon Fiber Pipe

1. Lightweight with Superior Strength

• Reduces overall structure weight

• Improves speed, efficiency, and handling in automotive, aerospace, and industrial machinery

2. High Durability

• Withstands tensile, compressive, bending, and torsional forces

• Resistant to fatigue, corrosion, and environmental degradation

3. Design Flexibility

• Available in multiple diameters, wall thicknesses, and lengths

• Fiber orientation can be customized for optimized mechanical performance

4. Thermal and Dimensional Stability

• Near-zero thermal expansion along the fiber axis

• Maintains mechanical properties under high temperature conditions

5. Cost-Effectiveness in the Long Term

• Reduced maintenance and replacement due to long service life

• Lightweight design reduces energy consumption in transportation and machinery

Application Scenarios of Carbon Fiber Pipe

1. Aerospace

• Hydraulic lines, structural supports, landing gear components

• Lightweight yet strong, reducing fuel consumption

• High fatigue resistance ensures safe operation under dynamic loads

2. Automotive Industry

• Drive shafts, chassis reinforcements, suspension components

• Improves vehicle performance and fuel efficiency

• Aesthetic options for visible components in premium cars

3. Sports Equipment

• Bicycle frames, hockey sticks, golf shafts, and rowing oars

• Lightweight with superior mechanical properties for performance

• Absorbs shock and enhances handling and precision

4. Robotics and Industrial Automation

• Robotic arms, linear actuators, and precision equipment supports

• High stiffness ensures accurate motion control

• Lightweight reduces energy consumption of actuators

5. Marine Applications

• Boat masts, rigging, and hull reinforcements

• Resistant to corrosion in saltwater

• Lightweight design improves stability and maneuverability

6. Construction and Architecture

• Lightweight support columns, structural reinforcements, and aesthetic elements

• Resistant to environmental conditions and chemical exposure

• Can replace metal pipes for modern architectural designs

7. Scientific and Industrial Instruments

• Telescopes, antenna masts, laboratory supports

• High rigidity maintains precise alignment

• Lightweight for portability and handling

Usage Instructions for Carbon Fiber Pipe

1. Storage

• Store in a cool, dry, and UV-protected environment

• Avoid stacking heavy objects to prevent deformation

• Keep away from chemical exposure that can degrade resin

2. Handling and Cutting

• Use diamond-coated or carbide cutting tools for clean edges

• Wear gloves, protective eyewear, and masks to avoid inhalation of fine Fibers

• Avoid impacts that may cause fiber cracking or delamination

3. Assembly and Bonding

• Can be joined with epoxy adhesives, mechanical fasteners, or sleeves

• Ensure clean bonding surfaces for maximum strength

• Avoid excessive bending beyond the pipe’s designed radius

4. Maintenance

• Inspect for cracks, delamination, or surface damage regularly

• Clean with mild detergents and water; avoid abrasive or chemical cleaners

Frequently Asked Questions (FAQ)

Q1: What industries use carbon fiber pipes?
Aerospace, automotive, sports, robotics, marine, construction, and scientific instrumentation.

Q2: Can carbon fiber pipes replace metal pipes?
Yes, they provide lightweight, corrosion resistance, and high strength, making them ideal for many applications.

Q3: What is the typical tensile strength of carbon fiber pipes?
600–2,500 MPa depending on fiber type and pipe design.

Q4: How are carbon fiber pipes manufactured?
Common techniques include filament winding, pultrusion, roll wrapping, and seamless molding.

Q5: Are carbon fiber pipes heat resistant?
Yes, depending on the resin system, service temperatures can reach 250–500°C.

Q6: Can carbon fiber pipes be bent?
Bending is possible within specified radii; exceeding limits may cause fiber fracture.

Q7: How should carbon fiber pipes be cut safely?
Use diamond-coated or carbide tools, and wear protective equipment.

Q8: Are they resistant to chemical corrosion?
Yes, carbon fiber pipes resist most acids, alkalis, solvents, and environmental corrosion.

Q9: Can carbon fiber pipes be painted or coated?
Yes, pipes can be painted, wrapped, or coated for UV protection or aesthetics.

Q10: How long do carbon fiber pipes last?
With proper care, carbon fiber pipes can last decades due to high mechanical and chemical resistance.

Conclusion

Carbon Fiber Pipes are high-performance structural components offering lightweight, strength, rigidity, thermal stability, and corrosion resistance. They are increasingly replacing traditional metals in aerospace, automotive, sports, marine, robotics, and industrial applications.

With customizable diameters, wall thicknesses, fiber orientations, and lengths, carbon fiber pipes can meet specific structural and aesthetic requirements. Proper handling, storage, and installation maximize performance and lifespan.
