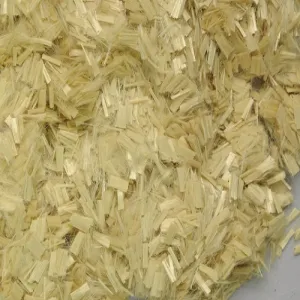

Aramid Sheet

Introduction

Aramid Sheet is a high-performance Composite Material made from Aramid Fibers—a type of aromatic polyamide—known for its superior strength, heat resistance, and lightweight characteristics. Often recognized under commercial names such as Kevlar® sheet or Nomex® sheet, aramid sheets have become indispensable in industries requiring materials that can withstand high stress, extreme temperatures, and demanding environmental conditions.

Aramid sheets combine the exceptional mechanical properties of Aramid fibers with resin matrices, such as epoxy, phenolic, or polyester, to form rigid and durable composite panels. These sheets deliver excellent strength-to-weight ratio, impact resistance, and thermal stability, making them ideal replacements for metals and other heavy materials in engineering and industrial applications.

From aerospace panels and electrical insulation to ballistic armor and automotive components, aramid sheets have proven to be one of the most versatile and reliable advanced materials in modern manufacturing. Their performance in structural, thermal, and protective applications continues to redefine engineering standards.

Technical Parameters of Aramid Sheet

Key Features of Aramid Sheet

1. Exceptional Strength-to-Weight Ratio

Aramid sheets provide steel-like strength at only a fraction of the weight. This property is crucial for industries that prioritize lightweight yet durable materials, such as aerospace and defense.

2. Superior Heat and Flame Resistance

Unlike thermoplastic composites, aramid sheets do not melt. They retain structural integrity up to 220°C and begin to decompose only beyond 500°C, making them ideal for thermal shields, fire barriers, and insulation boards.

3. High Impact and Energy Absorption

Aramid sheets exhibit extraordinary toughness and impact absorption, outperforming glass and carbon composites in terms of energy dissipation. This property makes them suitable for armor plates and crash-resistant structures.

4. Excellent Chemical and Environmental Stability

The aromatic molecular structure provides resistance to most organic solvents, fuels, and oils. Aramid sheets perform reliably in corrosive, humid, and high-pressure environments.

5. Outstanding Electrical Insulation

Meta-aramid sheets, such as Nomex®, are widely used as dielectric insulation materials in transformers, motors, and cables. Their dielectric strength and stability ensure consistent electrical performance even under heat and stress.

6. Dimensional Stability

Aramid Composites have minimal thermal expansion, maintaining shape and performance under temperature changes. This stability is valuable for precision-engineered components and electronic substrates.

7. Lightweight and Easy to Fabricate

Aramid sheets are easy to cut, drill, laminate, or machine, allowing flexibility during production. Their low weight simplifies assembly and reduces transportation costs.

8. Flame-Retardant and Non-Toxic

Aramid is inherently flame-retardant. In case of fire, it does not melt or release toxic fumes, complying with strict fire safety and environmental standards.

Advantages of Aramid Sheet

1. Lightweight Structural Efficiency

Aramid sheets offer outstanding specific strength—meaning strength per unit of weight—enabling engineers to design lighter yet stronger products.

2. Thermal and Electrical Dual Functionality

With both heat resistance and dielectric insulation, aramid sheets are highly versatile across industries requiring electrical and thermal protection.

3. Long-Term Durability

Aramid’s strong molecular bonds resist aging, wear, and fatigue, providing decades of stable performance even in demanding environments.

4. Safety and Environmental Compatibility

Aramid sheets are halogen-free and comply with RoHS and REACH standards, ensuring safe use in electrical and public safety equipment.

5. High Impact Resistance

The molecular chain structure absorbs kinetic energy efficiently, preventing fractures under sudden impact—an advantage over brittle materials like glass or carbon composites.

6. Dimensional Accuracy

Even under mechanical stress and high heat, aramid sheets maintain precise tolerances, making them ideal for engineered parts, gaskets, and spacers.

7. Resistance to Deformation

Unlike thermoplastics, aramid composites are thermoset materials that do not soften under heat, maintaining structural rigidity during operation.

8. Design Flexibility

Available in various thicknesses, densities, and surface finishes, aramid sheets can be customized for structural, thermal, or electrical functions.

Applications of Aramid Sheet

1. Aerospace and Aviation

Aramid sheets are used in the aerospace sector for:

• Aircraft interior panels

• Cargo liners and floor panels

• Thermal insulation and radomes

• Satellite shielding components

Their lightweight nature, vibration damping, and flame resistance contribute to fuel efficiency and passenger safety.

2. Automotive and Transportation

Automotive manufacturers use aramid sheets for:

• Brake and clutch components

• Heat shields and battery insulation

• Impact-resistant panels

• Noise and vibration damping layers

Electric vehicles (EVs) benefit from aramid’s thermal barrier properties to protect battery packs from heat propagation.

3. Electrical and Electronic Equipment

Aramid sheets—especially meta-Aramid Paper laminates—are vital in:

• Transformers and motors

• Printed circuit boards (PCBs)

• High-voltage insulation

• Flexible cable wrapping

Their dielectric properties, heat resistance, and mechanical stability make them a preferred choice in electrical design.

4. Defense and Security

In defense applications, aramid sheets are used for:

• Ballistic armor panels

• Vehicle and aircraft armor

• Protective shields and helmets

• Explosion-resistant enclosures

Aramid composites provide exceptional impact resistance while reducing overall equipment weight for enhanced mobility.

5. Industrial Machinery

Used in high-performance industrial equipment, aramid sheets serve as:

• Wear-resistant sliding surfaces

• Gaskets and spacers

• Conveyor belt covers

• Pump and compressor components

They provide long-lasting durability under constant friction and load.

6. Marine and Offshore Applications

Aramid sheets are used in:

• Boat hull reinforcement

• Fireproof wall panels

• Marine cables and covers
  Their UV and saltwater resistance ensure reliability in harsh marine conditions.

7. Building and Construction

Architectural applications include:

• Fireproof wall panels

• Thermal insulation layers

• Composite façade boards
  They meet fire-resistance standards while offering lightweight structural performance.

8. Sports and Leisure

Used in helmets, bicycle frames, and protective gear, aramid sheets combine safety and comfort without compromising on weight or flexibility.

Usage Instructions

1. Cutting and Machining

• Use carbide or diamond-coated tools for cutting and drilling.

• Maintain low feed rates to avoid delamination.

• For precision work, CNC milling is recommended.

• Avoid excessive heat buildup during machining to preserve resin integrity.

2. Bonding and Assembly

• Clean surfaces thoroughly with isopropyl alcohol before bonding.

• Use compatible adhesives (epoxy or polyurethane).

• Apply uniform pressure during bonding and curing.

• For structural assemblies, mechanical fasteners may be combined with adhesives.

3. Handling and Storage

• Store aramid sheets in dry, cool areas away from direct sunlight.

• Avoid prolonged UV exposure.

• Keep sheets flat or rolled with protective covers to prevent edge damage.

4. Cleaning and Maintenance

• Use mild detergents and a soft cloth for cleaning.

• Do not use solvents or abrasive cleaners.

• For electrical insulation sheets, avoid moisture accumulation during maintenance.

5. Safety Precautions

• Wear gloves and protective masks during cutting to prevent skin irritation from fine Fibers.

• Ensure adequate ventilation in the workspace.

• Dispose of scrap material according to environmental regulations.

Performance Comparison Table

Quality Standards and Certifications

Aramid sheets typically meet or exceed the following international standards:

• ISO 9001 / ISO 14001 – Quality and environmental management

• UL 94 V-0 – Flame retardancy certification

• ASTM D3039 – Tensile properties of fiber-reinforced composites

• IEC 60641 / 62631 – Electrical insulation materials

• RoHS / REACH – Environmental compliance

• NFPA 701 / EN 13501-1 – Fire performance classification

These certifications ensure that aramid sheets are safe, reliable, and environmentally compliant for industrial use.

Frequently Asked Questions (FAQ)

1. What is an aramid sheet made of?

Aramid sheets are composed of aramid fibers (such as Kevlar® or Nomex®) impregnated with a resin system like epoxy or phenolic to form a strong, rigid composite.

2. What makes aramid sheets different from Carbon Fiber sheets?

Aramid sheets are tougher and more impact-resistant, while Carbon Fiber Sheets are stiffer but more brittle. Aramid also offers better flame resistance and insulation.

3. Can aramid sheets resist high temperatures?

Yes. Aramid sheets can operate continuously up to 220°C and begin to carbonize only at around 500°C.

4. Are aramid sheets electrically conductive?

No. Aramid sheets are electrically insulating, which makes them suitable for electrical insulation and electronic components.

5. Are aramid sheets waterproof?

Aramid fibers absorb a small amount of moisture (3–7%), but they maintain dimensional stability and performance even in humid conditions.

6. Can aramid sheets be used outdoors?

Yes, but UV-protective coatings are recommended to prevent gradual fiber degradation under prolonged sunlight.

7. How can aramid sheets be cut or shaped?

They can be cut using CNC routers, water jets, or diamond saws. Manual cutting should be done carefully with sharp tools.

8. Is aramid environmentally friendly?

Yes. Aramid Materials are halogen-free, recyclable, and non-toxic, compliant with international environmental directives.

9. What thicknesses are available?

Aramid sheets are available from 0.1 mm up to 50 mm or customized based on project requirements.

10. What industries use aramid sheets most?

Key users include aerospace, defense, automotive, electrical, marine, and construction industries.

11. Can aramid sheets replace metal panels?

In many applications—especially where weight reduction and insulation are required—aramid sheets effectively replace aluminum or steel.

12. What resin types are used for aramid sheets?

Common resins include epoxy, phenolic, polyester, and cyanate ester, depending on the required performance characteristics.

Conclusion

The Aramid Sheet represents the perfect blend of lightweight strength, thermal endurance, and electrical insulation, offering engineers a material that meets the highest standards of performance and reliability. Its ability to replace heavier metals and withstand harsh conditions makes it one of the most versatile and valuable composites in modern manufacturing.

From aerospace and defense to automotive and electrical insulation, aramid sheets are trusted wherever strength, safety, and stability are non-negotiable. Whether used as structural reinforcement, fire barrier, or protective panel, aramid sheet technology continues to advance industrial efficiency and safety worldwide.
