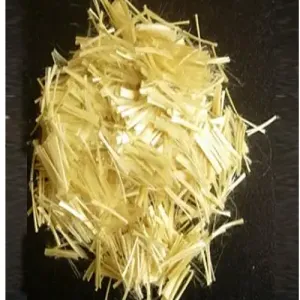

Aramid Fiber Cable

Introduction to Aramid Fiber Cable

Aramid Fiber Cable is a cutting-edge cable reinforcement solution that integrates Aramid fibers to significantly enhance mechanical strength, durability, and environmental resistance. Derived from high-performance synthetic aramid Fibers, these cables are designed to meet the demanding requirements of industries ranging from telecommunications and aerospace to industrial lifting and marine applications.

Aramid fiber cables provide superior tensile strength, excellent resistance to abrasion, and remarkable durability while maintaining a lightweight profile. Their unique properties, such as resistance to heat and chemicals, make them ideal for use in harsh environments where traditional cables might fail. Additionally, aramid fibers offer high modulus elasticity, making aramid fiber cables ideal for applications requiring minimal elongation under tension.

This comprehensive guide explores the technical specifications, key features, benefits, applications, installation instructions, and frequently asked questions related to aramid fiber cables. Whether you are a cable manufacturer, engineer, or end-user, this guide will equip you with valuable insights to optimize cable performance and reliability.

Technical Parameters of Aramid Fiber Cable

Understanding the technical parameters of aramid fiber cables is essential to selecting the right cable type for specific operational requirements.

1. Material Composition

• Core: High-strength aramid fibers (para-aramid such as Kevlar® or Twaron®)

• Sheath: Often made of polyethylene (PE), polyvinyl chloride (PVC), or other protective polymers

• Conductors: Copper, aluminum, or optical fibers depending on cable function

2. Mechanical Properties

• Tensile Strength: Typically ranges from 2,000 to 3,500 MPa depending on fiber type and cable design

• Modulus of Elasticity: Approximately 70-130 GPa

• Elongation at Break: 2.5% to 4.5%

• Breaking Load: Varies by cable diameter and fiber count; usually in the range of several kN (kilonewtons)

3. Physical Dimensions

• Diameter: Commonly ranges from 2 mm to over 50 mm, customizable based on application

• Weight: Lightweight compared to steel-reinforced cables, typically 30-50% lighter

4. Environmental Resistance

• Temperature Range: -40°C to +120°C continuous operation, short peaks to 200°C depending on sheath

• UV Resistance: High, especially with UV-resistant coatings

• Chemical Resistance: Resistant to oils, fuels, solvents, and many industrial chemicals

5. Electrical Properties (for conductive cables)

• Insulation Resistance: Varies with cable type and insulation material

• Dielectric Strength: High, suitable for power and communication cables

6. Fire and Safety Ratings

• Some aramid fiber cables come with flame-retardant or low-smoke zero-halogen (LSZH) jackets for safety compliance.

Key Features of Aramid Fiber Cable

1. Exceptional Tensile Strength

Aramid fiber cables provide superior strength-to-weight ratio compared to steel or Glass Fiber-reinforced cables, allowing for higher load capacities without increased weight.

2. Lightweight and Flexible

The low density of aramid fibers reduces cable weight significantly, enhancing ease of installation and reducing structural loads.

3. High Abrasion and Cut Resistance

The tough fiber core protects against mechanical wear, extending cable life in demanding environments.

4. Thermal Stability

Aramid fibers maintain integrity under wide temperature ranges, suitable for harsh operational conditions.

5. Chemical and Corrosion Resistance

Unlike metal-reinforced cables, aramid fiber cables resist corrosion and degradation from chemicals and moisture.

6. Low Elongation and High Modulus

Maintains cable length and tension over time, critical for precision applications like fiber optic cables.

7. Fire Safety Compliance

Many aramid fiber cables meet stringent fire safety standards, reducing hazards in installations.

Advantages of Aramid Fiber Cable

1. Increased Service Life

Resistance to environmental and mechanical damage translates into longer cable lifespans and reduced maintenance.

2. Improved Safety

Lightweight design reduces risk of injury during handling and installation, while flame-retardant materials enhance fire safety.

3. Enhanced Performance

Maintains mechanical and electrical properties under stress, temperature, and chemical exposure.

4. Cost Savings

Lower installation costs due to reduced weight and longer service intervals result in significant operational savings.

5. Versatility

Compatible with a wide range of cable types, including power, telecommunications, fiber optic, and control cables.

6. Environmental Friendliness

Aramid Fiber Production and cable design often have a lower environmental impact than metal alternatives.

Application Scenarios of Aramid Fiber Cable

1. Telecommunications and Data Networks

• Used as strength members in fiber optic cables to prevent elongation and mechanical damage during installation and operation.

2. Aerospace and Defense

• Reinforcement in aircraft control cables, helicopter rotor cables, and missile guidance cables requiring lightweight and high strength.

3. Marine and Offshore

• Mooring lines, winch cables, and underwater communication cables where corrosion resistance and strength are critical.

4. Industrial Machinery and Automation

• Control cables, robotic arm cables, and power transmission cables subjected to frequent movement and stress.

5. Renewable Energy

• Cables for wind turbines and solar installations benefiting from lightweight and environmental resistance.

6. Automotive Industry

• Reinforced wiring harnesses and control cables in electric and conventional vehicles.

Installation and Usage Instructions

Pre-Installation Checks

• Verify cable specifications match application requirements.

• Inspect cable for damage during transport and storage.

Handling

• Use appropriate lifting equipment to avoid excessive bending or twisting.

• Avoid sharp bends or kinks that can damage fibers or conductors.

Installation Environment

• Protect cable from exposure to chemicals or UV if not designed for such conditions.

• Ensure proper cable support to prevent sagging and mechanical stress.

Termination and Splicing

• Use manufacturer-approved connectors and splicing techniques for fiber optic or electrical cables.

• Maintain fiber integrity and avoid contamination.

Maintenance

• Periodic inspections for physical damage, abrasion, or environmental wear.

• Clean cable surfaces and connectors as recommended.

Common Problems and Solutions

Frequently Asked Questions (FAQ)

Q1: What are the main benefits of aramid fiber cables over steel-reinforced cables?

Aramid fiber cables offer comparable or superior strength at a fraction of the weight, with excellent corrosion and chemical resistance.

Q2: Can aramid fiber cables be used underwater?

Yes, many aramid fiber cables are designed with water-resistant jackets suitable for marine and underwater applications.

Q3: How does the tensile strength of aramid fiber cables compare to traditional cables?

Aramid fiber cables can have tensile strengths exceeding 3000 MPa, often outperforming steel cables on a strength-to-weight basis.

Q4: Are aramid fiber cables flexible enough for dynamic applications?

Yes, their flexibility and fatigue resistance make them suitable for moving parts and repeated bending.

Q5: How should aramid fiber cables be stored?

Store in a cool, dry place away from direct sunlight and chemicals to maintain performance.

Q6: Are aramid fiber cables flame-retardant?

Many are designed with flame-retardant jackets to meet safety regulations, but specifications vary.

Q7: Can aramid fiber cables be spliced or terminated with standard equipment?

Termination and splicing require specialized connectors and procedures compatible with the fiber and jacket materials.

Q8: What industries commonly use aramid fiber cables?

Telecommunications, aerospace, marine, industrial automation, renewable energy, and automotive sectors.

Conclusion

Aramid fiber cables represent a significant advancement in cable technology, providing unmatched strength, lightweight properties, and resistance to harsh environments. Their unique combination of mechanical performance, chemical resistance, and thermal stability makes them ideal for a broad spectrum of applications from telecommunications to aerospace.

Understanding their specifications, proper handling, installation techniques, and maintenance is crucial to maximizing the benefits of aramid fiber cables. As industries increasingly demand durable, reliable, and lightweight cable solutions, aramid fiber cables are positioned to lead innovation and safety.

Investing in quality aramid fiber cable technology ensures enhanced performance, safety, and cost savings over the cable's lifecycle.
